AWS From Scratch with Terraform - Setting up your Root Account for IaC (using Terraform Cloud)

April 1, 2023

Following this article will get you setup with an AWS Root account that can be managed through through Terraform Cloud with OIDC. As a best practice you should not keep long-lived access keys in your CI/CD pipelines when deploying to AWS, instead you should use OIDC (OpenID Connect) to securely deploy to AWS when using Terraform Cloud or Github Actions.

TL;DR

Download all the source from the blog post here:

https://github.com/sontek/aws-terraform-bootstrap

How does OIDC work

OIDC enables us to request a short-lived access token directly from AWS. We just have to create trust relationship that controls which workflows are able to request the access tokens.

No need to duplicate AWS credentials as long-lived GitHub secrets.
Since we are using a short-lived access token that is only valid for a single job there is no reason to worry about rotating secrets.

The following diagram gives an overview of how we can use Terraform Cloud's OIDC provider to integrate with AWS:

In AWS, create an OIDC trust between a role and our terraform cloud workflow(s) that need access to the cloud.
Every time a job runs, TFC's OIDC Provider auto-generates an OIDC token. This token contains multiple claims to establish a security-hardened and verifiable identity about the specific workflow that is trying to authenticate.
Request this token from TFC's OIDC provider, and present it to AWS
Once AWS successfully validates the claims presented in the token, it then provides a short-lived cloud access token that is available only for the duration of the job.

What does this post accomplish

Setup a root AWS account that is managed througuh terraform
Setup OIDC authentication with Terraform Cloud so it can talk to AWS
Setup Github Actions authentication with Terraform Cloud so we can run plan and apply through the CI/CD pipeline.

Setup AWS Access

It is very bad practice to use the root account for much of anything but for bootstrapping the account it is necessary, so the first step is to get your AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY

To do this click your account and choose Security Credentials in the top right:

Then choose Create Access key:

You need to set these environment variables in your shell so that your local shell has access to AWS. After you set them you can verify you set them correct by running:

❯ aws sts get-caller-identity

and you should get a result similar to:

{
    "UserId": "777777777777",
    "Account": "888888888888",
    "Arn": "arn:aws:iam::888888888888:root"
}

Bootstrap

Before you can manage any of your accounts through Terraform Cloud you'll need bootstrap some core infrastructure like OIDC so Terraform Cloud can authenticate securely and manage AWS Resources on your behalf.

I personally prefer doing this in two repositories:

infra-bootstrap: This repository does the bare minimum to hook up terraform cloud with your AWS account and stores the state in git. Its the only infra that will not be controlled by your CI/CD pipeline.
infra: The actual repository where all the rest of your AWS resources are managed. It will store state in Terraform Cloud and you can introduce a CI/CD pipeline for approving changes.

Note: This repository will be generated with the terraform code.

After manually creating the git repository infra-boostrap in your Github account We will need 3 providers to bootstrap the account aws, github, and tfe.

Variables

Create a 1-variables.tf where we can define the variables we'll need for creating these resources.

variable "tfc_aws_audience" {
  type        = string
  default     = "aws.workload.identity"
  description = "The audience value to use in run identity tokens"
}

variable "tfc_hostname" {
  type        = string
  default     = "app.terraform.io"
  description = "The hostname of the TFC or TFE instance you'd like to use with AWS"
}

variable "tfc_project_name" {
  type        = string
  default     = "Default Project"
  description = "The project under which a workspace will be created"
}

variable "tfc_organization_name" {
  type        = string
  description = "The name of your Terraform Cloud organization"
}

variable "tfc_organization_owner" {
  type        = string
  description = "The owner of the TFC organization"
}

variable "tfc_workspaces" {
  type        = list(string)
  description = "The list of TFC workspaces"
}

variable "github_organization" {
  description = "The organization the repositories are owned by"
  type        = string
}

variable "github_repo_name" {
  description = "The name of the git reppository we'll create for managing infra"
  type        = string
}

variable "github_default_branch" {
  description = "The default branch to utilize"
  type        = string
  default     = "main"
}

variable "github_oauth_client_id" {
  description = "The token for the TFC OAuth client shown under VCS providers"
  type        = string
  default     = null
}

variable "aws_root_account_id" {
  description = "The AWS root account we want to apply these changes to"
  type        = string
}

We will use these variables in the later modules but they are mostly metadata around the terraform and github accounts you'll need to setup manually.

Providers

Create a file called 2-main.tf and define the providers:

terraform {
  required_providers {
    tfe = {
      source  = "hashicorp/tfe"
      version = "0.41.0"
    }

    aws = {
      source  = "hashicorp/aws"
      version = "4.58.0"
    }

    github = {
      source  = "integrations/github"
      version = "5.18.3"
    }
  }
}

provider "aws" {
  region = "us-east-1"

  # Root account, all other accounts should be provisioned
  # via pull requests
  allowed_account_ids = [var.aws_root_account_id]
}

provider "github" {
  owner = var.github_organization
}

The key things there are we define allowed_account_ids to prevent us from working against any account that isn't the root and we are using one of the variables we defines earlier.

Github

We will utilize terraform to create the second git repository where the rest of the infrastructure will go. Create a file called 3-github.tf:

resource "github_repository" "repo" {
  name        = var.github_repo_name
  description = "Infrastructure Repository"
  visibility  = "private"
  auto_init   = true
  has_issues  = true
}

resource "github_branch_default" "default" {
  repository = github_repository.repo.name
  branch     = var.github_default_branch
}

output "repository_id" {
  value = github_repository.repo.id
}

This will generate a new repository in your account called infra.

Terraform Cloud

Now we need to setup dynamic credentials so the terraform cloud agent is allowed to take actions on your behalf. To do this we'll setup an IAM role and an OIDC provider. Create a file called 4-tfc.tf:

resource "tfe_organization" "organization" {
  name  = var.tfc_organization_name
  email = var.tfc_organization_owner
}

/* AWS will use this TLS certificate to verify that requests for dynamic
credentials come from Terraform Cloud.*/
data "tls_certificate" "tfc_certificate" {
  url = "https://${var.tfc_hostname}"
}

/* sets up an OIDC provider in AWS with Terraform Cloud's TLS certificate,
the SHA1 fingerprint from the TLS certificate
*/
resource "aws_iam_openid_connect_provider" "tfc_provider" {
  url            = data.tls_certificate.tfc_certificate.url
  client_id_list = [var.tfc_aws_audience]
  thumbprint_list = [
    data.tls_certificate.tfc_certificate.certificates[0].sha1_fingerprint
  ]
}

/* Policy to allow TFC to assume the AWS IAM role in our account */
data "aws_iam_policy_document" "assume_role" {
  statement {
    effect = "Allow"

    principals {
      type        = "Federated"
      identifiers = [aws_iam_openid_connect_provider.tfc_provider.arn]
    }
    condition {
      test     = "StringEquals"
      variable = "${var.tfc_hostname}:aud"

      values = [
        "${one(aws_iam_openid_connect_provider.tfc_provider.client_id_list)}"
      ]
    }

    condition {
      test     = "StringLike"
      variable = "${var.tfc_hostname}:sub"

      values = [
        for workspace in var.tfc_workspaces : "organization:${tfe_organization.organization.name}:project:${var.tfc_project_name}:workspace:${workspace}:run_phase:*"
      ]
    }
    actions = ["sts:AssumeRoleWithWebIdentity"]
  }
}

resource "aws_iam_role" "tfc-agent" {
  name               = "tfc-agent"
  assume_role_policy = data.aws_iam_policy_document.assume_role.json
}

/* Policy for what the TFC agent is allowed to do */
data "aws_iam_policy_document" "tfc-agent" {
  version = "2012-10-17"

  statement {
    actions   = ["*"]
    effect    = "Allow"
    resources = ["*"]
  }
}

resource "aws_iam_policy" "tfc-agent" {
  name        = "tfc-agent-access-policy"
  description = "Access policy for the TFC agent"
  policy      = data.aws_iam_policy_document.tfc-agent.json
}

resource "aws_iam_role_policy_attachment" "tfc-access-attach" {
  role       = aws_iam_role.tfc-agent.name
  policy_arn = aws_iam_policy.tfc-agent.arn
}

/* Fetch an oauth token from the client */
data "tfe_oauth_client" "github" {
  /* Don't fetch the client if we don't have the client_id */
  count           = var.github_oauth_client_id != null ? 1 : 0
  oauth_client_id = var.github_oauth_client_id
}

resource "tfe_workspace" "workspaces" {
  count        = length(var.tfc_workspaces)
  name         = var.tfc_workspaces[count.index]
  organization = tfe_organization.organization.name

  working_directory = var.tfc_workspaces[count.index]

  /* This generates a webhook on the github repository so plans are triggered
  automatically.   We dynamically set the setting because we will not have the
  oauth client ID on first pass.
  */
  dynamic "vcs_repo" {
    for_each = var.github_oauth_client_id != null ? [var.github_oauth_client_id] : []
    content {
      identifier     = format("%s/%s", var.github_organization, github_repository.repo.name)
      oauth_token_id = data.tfe_oauth_client.github[0].oauth_token_id
    }
  }
}

/* These variables tell the agent to use dynamic credentials */
resource "tfe_variable" "tfc-auth" {
  count        = length(var.tfc_workspaces)
  key          = "TFC_AWS_PROVIDER_AUTH"
  value        = true
  category     = "env"
  workspace_id = tfe_workspace.workspaces[count.index].id
  description  = "Enable dynamic auth on the TFC agents"
}

resource "tfe_variable" "tfc-role" {
  count        = length(var.tfc_workspaces)
  key          = "TFC_AWS_RUN_ROLE_ARN"
  value        = aws_iam_role.tfc-agent.arn
  category     = "env"
  workspace_id = tfe_workspace.workspaces[count.index].id
  description  = "Tell TFC what Role to run as"
}

This module is dynamic because there is one piece that will require a manul oauth setup for github. So the first pass will apply without it and then later on we'll create it and run the apply again.

Applying the changes

Now we just need to define our settings for the module and we'll get our infrastructure applied. Create a file called settings.auto.tfvars and populate it with the content for your account. This is an example of what this should look like:

tfc_organization_name  = "sontek"
tfc_organization_owner = "john@sontek.net"

# The workspaces you want to create and be able to manage with IaC
tfc_workspaces = [
  "root"
]
# this can be your username
github_organization    = "sontek"
github_repo_name       = "sontek-infra"
aws_root_account_id    =  "888888888888"

Now run:

❯ terraform login
❯ terraform init

and you should see:

Terraform has been successfully initialized!

Now lets run our plan:

❯ terraform plan

You should see a result:

Plan: 10 to add, 0 to change, 0 to destroy.

Apply it to make those resources:

❯ terraform apply

At this point it:

Created a terraform cloud organization
Created a terraform cloud workspace
Created a git repository

Verify TFC can talk to AWS

To verify that TFC can communicate with AWS through the dynamic credentials, lets clone the repository and make some dummy resources. After you've cloned the repository lets make a folder for the workspace root that we defined in bootstrap:

❯ mkdir root
❯ cd root

Now create a 1-providers.tf:

terraform {
  cloud {
    organization = "sontek"

    workspaces {
      name = "root"
    }
  }

  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "4.58.0"
    }

    tfe = {
      source  = "hashicorp/tfe"
      version = "0.42.0"
    }
  }
}

provider "aws" {
  region = "us-east-1"

  default_tags {
    tags = {
      Owner   = "john@sontek.net"
      Env     = "Root"
      Service = "BusinessOperations"
    }
  }
}

NOTE: You should replace organization, workspaces.name, and tags.Owner to be your own values.

Now create a small resource to prove everything is working, we'll use SQS for this. Create a file called 2-sqs.tf:

resource "aws_sqs_queue" "example-sqs" {
  name                        = "example-sqs"
  message_retention_seconds = 86400
  receive_wait_time_seconds = 10
}

If you run the plan you should see the resource it wants to create:

❯ terraform init
❯ terraform plan

and you should see the run is executing in terraform cloud:

Running plan in Terraform Cloud. Output will stream here. Pressing Ctrl-C
will stop streaming the logs, but will not stop the plan running remotely.

You can click the link it provides to see the logs. Now lets apply this resource to see it all working:

❯ terraform apply

You should get a response like:

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

So Terraform Cloud has full access to create AWS resources! The final step is to get github running the plan/apply on pull requests. Commit these files to your repository and we'll remove them in a pull request. Create a .gitignore file in the root:

.terraform*

and commit all the files:

❯ git add *
❯ git commit -m "initial infra"
❯ git push origin head

Github VCS Provider

To setup oauth between github and terraform cloud so it can manage the webhooks you need to login to the [https://app.terraform.io](Terraform Cloud Console) and initiate the connection.

Select the newly created organization and then click Settings. In the sidebar there will be a section Version Control and you want to select Providers under that.

At this point you should see an Add a VCS Provider button, you want to select Github.com (Custom):

Follow the on-screen instructions to create a new GitHub OAuth application on your account. For me, I went to here and provided the information TFC displayed:

On the Github side you need to save the Client ID and you need to click Generate a new client secret. Provide those details to terraform cloud and then we should be ready to send our first PR!

Finish Bootstrap

At this point we need to return to the bootstrap repository and provide it the new OAuth Client ID for its github_oauth_client_id setting. To get the value for this the easiest way is to drill into the VCS provider in terraform and click Edit Client. In the URL you'll see the Client ID, it should start with oc-....

Now return back to the bootstrap repository and edit settings.auto.tfvars and set the final setting:

github_oauth_client_id = "oc-......"

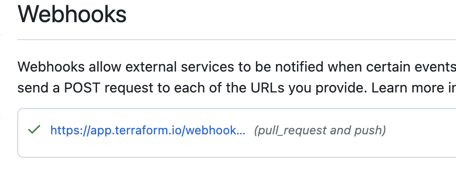

Now you should be able to run a plan and see the vcs_repo get added in-place:

❯ terraform plan

  ~ update in-place

Terraform will perform the following actions:

  # tfe_workspace.workspaces[0] will be updated in-place
  ~ resource "tfe_workspace" "workspaces" {
        id                            = "ws-..."
        name                          = "root"
        # (20 unchanged attributes hidden)

      + vcs_repo {
          + identifier         = "sontek/sontek-infra"
          + ingress_submodules = false
          + oauth_token_id     = "ot-..."
        }
    }

Plan: 0 to add, 1 to change, 0 to destroy.

Apply the change!

❯ terraform apply

After you apply the change, if you go to Settings -> Webhooks of the infra repository that was created earlier you should see a new terraform cloud webhook was created.

Send your first pull request

Now you should be able to send a pull request tearing down the SQS resource we generated at the beginning and terraform cloud will take care of the rest! Make sure you are on the generated infra repo and:

❯ rm root/sqs.tf

and commit / push that to a branch and open a pull request. When you merge it will apply the changes.

Next Steps

This should be good enough for you to manage your AWS cloud infrastructure as code with terraform but I personally don't like that terraform cloud applies the changes on merge. There are a lot of ways where a plan can succeed but an apply will fail and you end up with broken configuration in main.

I prefer a worfklow called apply-before-merge and in my next post I'll show you how to do that through github actions instead of utilizing the TFC webhook.

Check out that post here!
